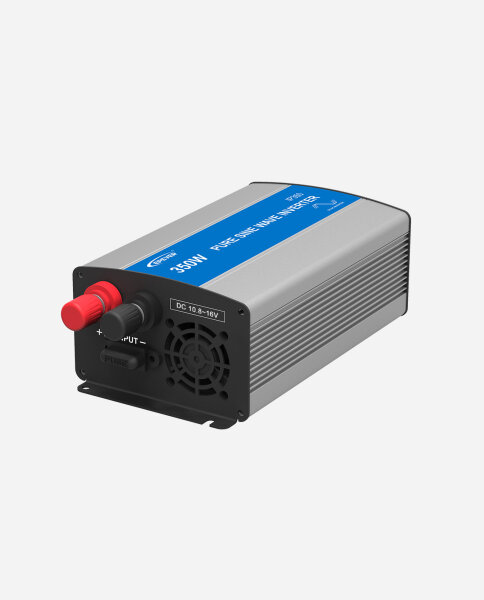

EPEVER® IP350-12 Reiner Sinus 350W 12V auf 230V - (0% Mwst)

EPEVER® IP350-12 Reiner Sinus 350W 12V auf 230V - (0% Mwst)

SKU: 00-3100350
Manufacturers: EPEVER

Output power (15min) :350W; converts 12VDC to 230VAC
Max. efficiency up to 95%
LED indicators
Operational USB output 5VDC/1A
Safe design with input and output electrical isolation
do not support lithium battery

73,07 €

incl. 0% VAT , plus

Low stock level

Description
FAQ
Reviews

The EPEVER® IPower series represents a series of pure sine wave off-grid inverters, which can convert 12/24/48V DC into 220 / 230V AC.Industrial design, compared with the civilian design, has a wider operating temperature range (-20 ? ~ + 45 ?), greater reliability and higher efficiency. There are many advantages such as a concise and light appearance, easy installation and operation. The wide input voltage range is ideal for use in solar systems. The voltage transformer can be used in many areas, ideal for household emergency lighting, vehicle-mounted system and small and medium-sized power supplies, etc.

Special features

Max. efficiency up to 95%
Safe design with electrical insulation for input and output
Adoption of advanced SPWM technology, pure sine output
LED indicators for error status and working status
Low idle consumption
Input protection: Overvoltage and low voltage protection
Output protection: Overload and short circuit protection
Overheating protection: Temperature controlled ventilation; automatic shutdown in case of overheating
Suitable for all types of electrical appliances
do not support lithium battery

Technical specifications

Manufacturer model	IP350-12
EAN Code	4260558571131
Article number	3100350
Input rated voltage of the battery	12VDC
Input voltage range	10.8 ~ 16VDC
Fuse	32VDC / 35A
Output voltage	220VAC (± 5%) / 230VAC (-10% ~ + 5%)
Continuous power up to + 45 ?	280W
Output power up to 15 min.	350W
Efficiency	91%
IP protection	IP20
Operating temperature	-20 ? ~ + 45 ?
Dimension	214 × 105.5 × 57.7mm
Weight	0.9kg

Does the EPEVER inverter support lithium battery?

Only the IP-Plus series and UPower-HI series inverter support lithium battery.

Does the inverter need to be grounded?

Yes. To avoid danger, the inverter must be grounded due to the high output voltage. If the inverter encounters electric leakage, it is dangerous for people to touch. By grounding, the electric leakage is directed to the earth instead of the human body.

How to select the right inverter if known the load types and power?

Required information: AC Load Type; Rated Power; Power Factor; Starting Inrush Current Coefficient. Follow the below formula to calculate the maximum load power. Maximum load power = (Rated power / Power factor) * Starting inrush current coefficient Follow the below formula to calculate the continuous load power Load continuous power = Rated power / Power factor Follow the rules to select inverter: a) The continuous inverter power higher or equal to the continuous load power. b) The inverter allowed overload power is higher and equal to the maximum load power. Example: An air conditioner with 735W and power factor of 0.9, which is an inductive load, also it’s starting inrush current coefficient is 5. So the maximum power is (735W/0.9)*5=4105VA, the continuous power is 735W/0.9=817VA. This means the inverter rated power should be higher than 817W and allowed overload power should higher than 4105W to handle this air conditioner.

How long is the manufacturer's warranty for charge controllers?

2 years
