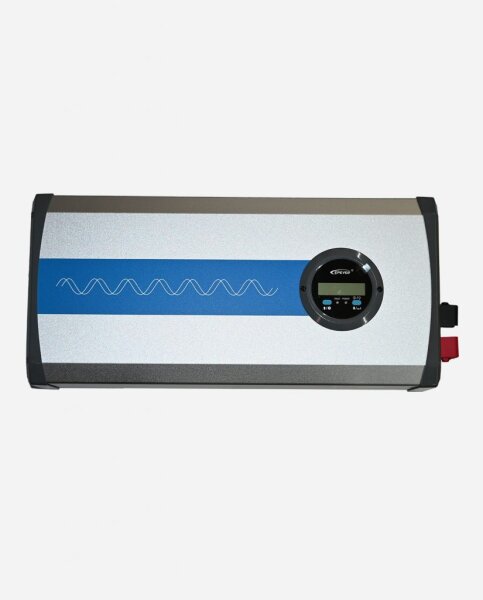

EPEVER® IP-PLUS Serie LCD Display Pure Sine Wave Inverter 48VDC to 230VAC | 5000W

EPEVER® IP-PLUS Serie LCD Display Pure Sine Wave Inverter 48VDC to 230VAC | 5000W

SKU: 00-3395000
GTIN: 4260558577126
Manufacturers: EPEVER

180 ° rotatable LCD display
Smartphone apps, PC software remote control
Output power factor up to 1
Input surge current suppression for lithium battery (LiFePo4) system
The metal enclosure of the inverter must be grounded

Online reading and download:User manual - IP PLUS Inverter

Dauerausgangsleistung

282,31 €

incl. 0% VAT , plus

Goods ordered. 48 expected on 16.07.2026.

EPEVER® IPower Plus is the new generation of pure sine wave inverter which is compatible with the lithium battery system. This new inverter with the input surge current suppression technology, which effectively prevents the damage of surge current to lithium battery cell and BMS (Battery Management System). Also, the smart voltage and current double closed-loop control algorism bring the inverter a faster response and better resistance to load impact. The optional communication solution allows people to monitor the operational status in real-time or change the parameters at any place.The equipment fits multiple areas where need DC to AC, such as solar AC power system, vehicle system, caravan, off-grid system etc.

Features

Input to output electrical isolation
Smart voltage and current double closed-loop control bring a faster response and better reliability.
Input surge current suppression technology to support the lithium battery system
Output power factor up to 1
Low loss of no-load and standby
Extensive protection:Input reverse polarity; Input overvoltage;Input low voltage;Output overload and short circuit;Overheating
Extra external switch port
Phone and PC remote control through RS485 port
IEC62109, EN61000, RoHS approved

Technical specification

Model	IP2000-42-PLUS	IP3000-42-PLUS	IP4000-42-PLUS	IP5000-42-PLUS
Item number	3392000	3393000	3394000	3395000
EAN Code	4260558572954	4260558573418	4260558573296	4260558573302
Rated input voltage	48VDC	48VDC	48VDC	48VDC
Input voltage range	43.2～64VDC	43.2～64VDC	43.2～64VDC	43.2～64VDC
Continuous Output power	2000W	3000W	4000W	5000W
Surge power	4000W(5s)	6000W(5s)	8000W(5s)	8000W(5s)
Output voltage	220VAC(±3%)；230VAC(-7%~+3%)	220VAC(±3%)；230VAC(-7%~+3%)	220VAC(±3%)；230VAC(-7%~+3%)	220VAC(±3%)；230VAC(-7%~+3%)
Output frequency	50/60Hz±0.2%	50/60Hz±0.2%	50/60Hz±0.2%	50/60Hz±0.2%
Load power factor	0.2~1(VA≤ Continuous Output power)	0.2~1(VA≤ Continuous Output power)	0.2~1(VA≤ Continuous Output power)	0.2~1(VA≤ Continuous Output power)
Rated output power efficiency①	＞92.5%	＞92.5%	＞91%	＞91%
Max. efficiency②	＞94.5% (30% Load)	＞94.5% (30% Load)	＞94% (30% Load)	＞94% (30% Load)
Self-consumption	＜0.1A	＜0.1A	＜0.1A	＜0.1A
No-load current	＜0.5A	＜0.5A	＜0.6A	＜0.8A
USB output	/	/	/	/
RS485 com.port	5VDC/200mA	5VDC/200mA	5VDC/200mA	5VDC/200mA
Working temperatur	20℃~+60℃	20℃~+60℃	20℃~+60℃	20℃~+60℃
Enclosure	IP20	IP20	IP20	IP20
Product dimension	421×231.5×123mm	491×231.5x123mm	516×231.5×123mm	531×231.5×123mm
Mounting dimension	395×145mm	465x145mm	490×145mm	505×145mm
Net weight	6,5kg	7kg	8kg	9kg

①Load power is continuous output power when the DC input is the rated voltage (25℃)②This efficiency is referred to the max. power when connected with different load under the rated DC input voltage.
